C Z Channel Roll Forming Machine / Machine Prices
  • C Z Channel Roll Forming Machine / Machine Prices
  • C Z Channel Roll Forming Machine / Machine Prices
  • C Z Channel Roll Forming Machine / Machine Prices
  • C Z Channel Roll Forming Machine / Machine Prices
  • C Z Channel Roll Forming Machine / Machine Prices
Unit Price: 15000~35000 USD
Payment Type: T/T,L/C,Western Union
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 35 Days
Basic Info

Model No.: C Purlin

Product Description
XH C Z Purlin Roll Forming Machine / Machine Prices






C-beam device is a roller to produce a variety of specifications C Purlin Roll Forming Machine finished alone.


It consists of passive loading rack, leveling device, punching device, after forming cutting device, hydraulic station, computer control systems.C steel flying saw with automatic punching equipment, simple operation. C-beam equipment roll of C steel finished with good flatness bending pressure performance is good,







Automatic fixed-length cutting, automatic punching, high degree of automation, quick and easy installation, the product can be used as the main medium-sized industrial buildings by force structures, such as factories, warehouses, machine garages, hangars, exhibition halls, theaters, stadiums, fairs Shed roof and wall flat load bearing support.









Working process









Tils drawing

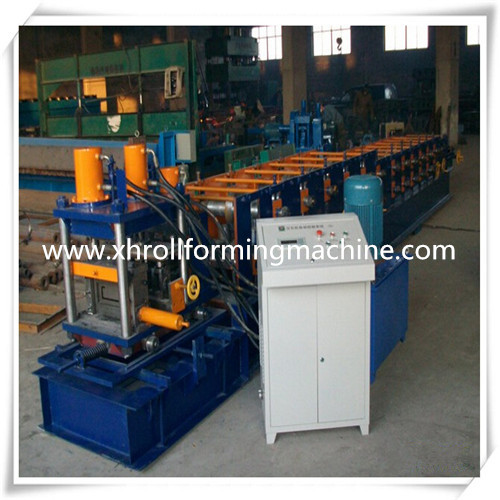

Machine shows


C Purlin Roll Forming Machine






Metal C Z Roll Forming MachineC Channel Roll Forming Machine


Parameter






Material Width 165-415mm
Effctive width 80-300mm
Thicknes 1.5-3mm
Size 7600mm*1400mm*1300mm
Weight about 5tons
Diameter of shaft Φ80,45#steel
Material of roller 45#steel,Chrome
Main motor power 11kw
Hydraulic station 4kw
Number of rollers 13stand rollers
Control system PLC computer controller
Speed 6-10m/min
Chain 1.5 inch



Customers





Containers





Our Service




1. Installation and training of machine manufacturer:

a.If buyers visit our factory and check the machine, we will teach you how to install and use the Roll Forming Machine for sale , and also train your workers/technician face to face.

b.Without visiting, we will send you user manual and video to teach you to install and operate.

c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

2. After Service of roll forming machine for sale

a.One year guarantee for whole roll forming machine for sale.

b.24 hours technical support by email or calling

c.If there is any problem found of steel roof sheet roll forming machinery, we will repair roll forming machine for sale for free in one year.




















Contact us if you need more details on Fully Automatic C Channel Roll Forming Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Cold Steel Strip Roll Forming Machine、C Purlin Cold Roll Forming Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
