CZU Profile Fast Changing Cold Roll Forming Machine
  • CZU Profile Fast Changing Cold Roll Forming Machine
  • CZU Profile Fast Changing Cold Roll Forming Machine
  • CZU Profile Fast Changing Cold Roll Forming Machine
  • CZU Profile Fast Changing Cold Roll Forming Machine
  • CZU Profile Fast Changing Cold Roll Forming Machine
Unit Price: 187500~188000 USD
Min. Order: 1 Set/Sets
Packaging: wooden pallet package or bulk cargo according to customer's requirements
Productivity: 20 sets per month
Brand: Raintech
Transportation: Ocean,Air
Place of Origin: Shandong, China
Supply Ability: 20 sets/month
Certificate: CE/ISO
HS Code: 8453200000
Port: Qingdao
Basic Info

Model No.: CZU

Product Description

CZU Profile Fast Changing Cold Roll Forming Machine

Main technical parameters of C Z profile forming machine

Describe type

C-beam model

Z-beam model

Bottom (H)



Flank (b)



Small side (c)



Punching distance (H)



Plate thickness



1. Plate thickness: 1.0-3.5mm, 2.5mm for inspection

2. Material: Aluminum zinc plate

3. Coil outer diameter: Ф 1200 mm

4. Coil inner diameter: Ф 508mm

5. Width of steel strip: < 650mm

6. Single roll weight: ≤ 5000 kg

7. Power requirements: 380V, 50Hz, 3-phase

8. Effective working speed of the whole line: 15 ~ 20m / min

2. Production process of CZ interchange forming line

The production line is carried out according to the following technological process:

Uncoiler → leveler → looper (material storage)→ servo feeding → multi-station punching machine (cut off)→ molding main machine → finished product discharge

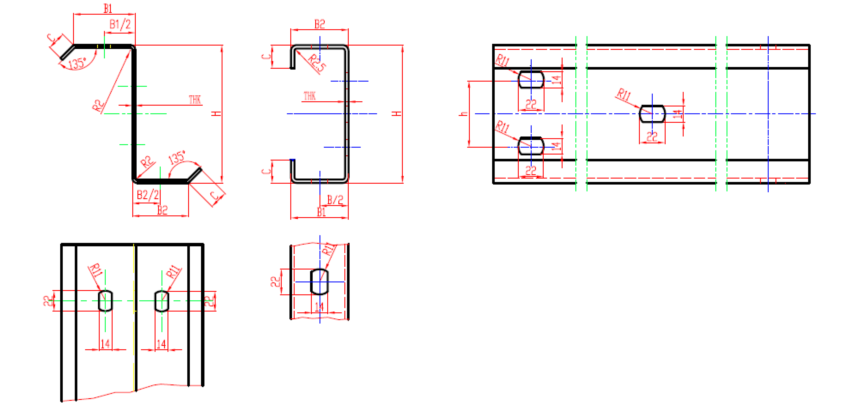

Reference drawing of automatic C Z Purlin Roll Forming Machine:


cz profile rollforming
