Product Description
XH 840/900 Double Roof Sheet And
Wall Panel Roll Forming Machine/
Cold Roll Forming Machine Production Line-Botou Xinghe Roll Forming Machinery Co.,Ltd
Our company adopts the double layer design can be produced from a machine, small occupation area, convenient transportation, save the cost.
Double Layer Roll Forming Machine adopts precision metering pump, frequency conversion speed, computer control, accurate measurement. The color steel plate with high level equipment automatic control software, to achieve production information management. The whole unit automation control system using high integrated network, make automation system performance is more superior.
Working process
Un-coiler--sheet guilding--roll forming--measure length--cutting the panel--production output

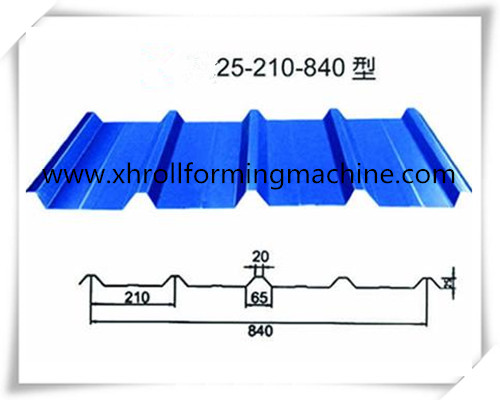

Tils drawing
Ps:We are factory,we know better what kind of machine buyers need and we are good at designing totally as buyers' panel or samples.
Parameter
| Material Width | 1000mm |
| Effctive width | 840/900mm |
| Thicknes | 0.3-0.6mm |
| Size | 6500mm*1300mm*1500mm |
| Weight | about 3.5tons |
| Diameter of shaft | Φ70,45#steel |
| Material of roller | 45#steel,Chrome |
| Main motor power | 4kw |
| Hydraulic station | 4kw |
| Number of rollers | 11/9 stand rollers |
| Control system | PLC computer controller |
| Speed | 6-10m/min |
| Chain | 1 inch |
Ps:All parameters above are changeable.We shall design the machine according to your requirement.

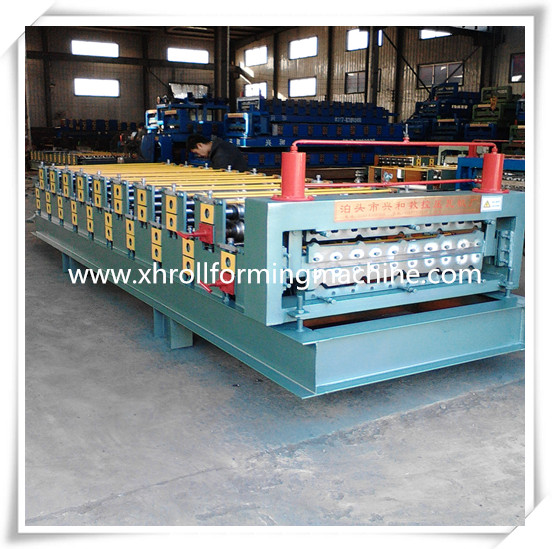

Machine shows
PS:We are a
Roll Forming Machine manufacturer of custom made basis,please send us your panel profile or sample.
Customers
Ps:our products export to Russia, India, English, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Rumania and Albania etc, more than 50 countries and regions.
Containers
SERVICE
1.)we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket,visa,accormadation,food and transpotaion in your country
2.)You can send your men to our factory. we will teach them how to operate the machine without training charges
3. )Actually theres another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manaul first ,and get familiar with the machine. Then we can get a video call,and teach you on-line how to operate the machine.
4.)Apart from above training course,we also provide 1 year warranty for all the easily broken part of the machine for free and whole-life technical service support !
Contact us if you need more details on High Quality 840/900 Double Layer Roll Forming Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Cold Roll Forming Machine Production Line、840/900 Double Roof Sheet And
wall panel roll forming machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
Product Categories : Hydraulic Machine > Hydraulic Decoiler
