Product Description
Color Steel Coil Joint-Hidden
Roof Panel Roll Forming Machine Working process
Technical process
Manual decoiler→ feed with guide→ roll forming→ cutting with fixed length→ output with table
Tile drawing and tile

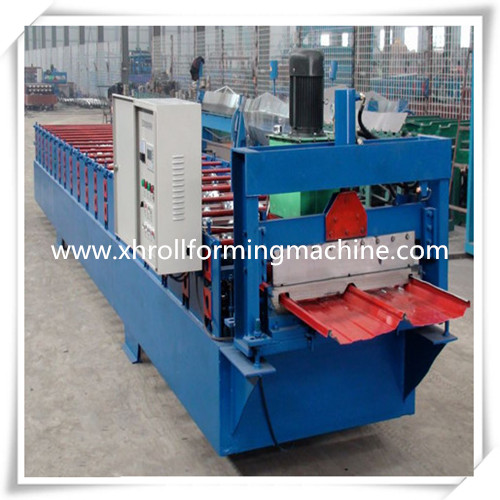

Machine shows
Product Feature:
The feature looks beautiful, elegant and noble. those are widely used in building
the factory, hotel, and mobile house and so on.
This kind of machine has the best quality and the best price. It has accurate
measurement and easy operating. We can design and manufacture the special
type machine according to the customers' requirement and we could provide technical
guiding, production, installation, debugging and maintenance service to all customers.
Machine's components:
Tile forming machine consist of uncoiler,coil sheet guiding and adjusting device,covering
film device,main roll forming system,pressing device,cutting device,hydraulic station,
PLC control system and support table.
Machine parameter
| Material Width | 1000mm |
| Effctive width | 820mm |
| Thicknes | 0.3-0.8mm |
| Size | 9600mm*1000mm*1300mm |
| Weight | about 4.5tons |
| Diameter of shaft | Φ75,45#steel |
| Material of roller | 45#steel,Chrome |
| Main motor power | 5.5kw |
| Hydraulic station | 4.0kw |
| Number of rollers | 19stand rollers |
| Control system | PLC computer controller |
| Speed | 6-10m/min |
| Chain | 1 inch |
SERVICE
One years for free, after the warranty period. we will help you repair the machine, you only responsible for the labour and parts, when the machine have some problem
EXPORT MARKET
Russia, India, English, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Rumania and Albania etc, more than 50 countries and regions.
Contact us if you need more details on Color Steel Coil Forming Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Roof Tiles
Roll Forming Machine、Joint-Hidden Roof Press Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
