hot selling alluminum cz purling roll forming machine
Basic Info
Product Description Products Description C shaped steel is a purlin and wall beam widely used in steel structure construction. It can also be combined into lightweight roof trusses and brackets. In addition, it can also be used for columns, beams and arms in the manufacture of light machinery. .It is widely used in steel structure workshops and steel structure engineering and is a commonly used construction steel. It is made by cold bending of hot rolled plate.
The C-shaped steel wall is thin and light, with excellent cross-sectional performance and high strength. Compared with traditional channel steel, the same strength can save 30% of the material.c purlin rollformer machinery c profile channel roll C steel framing profile forming machine
Details Images Product Paramenters

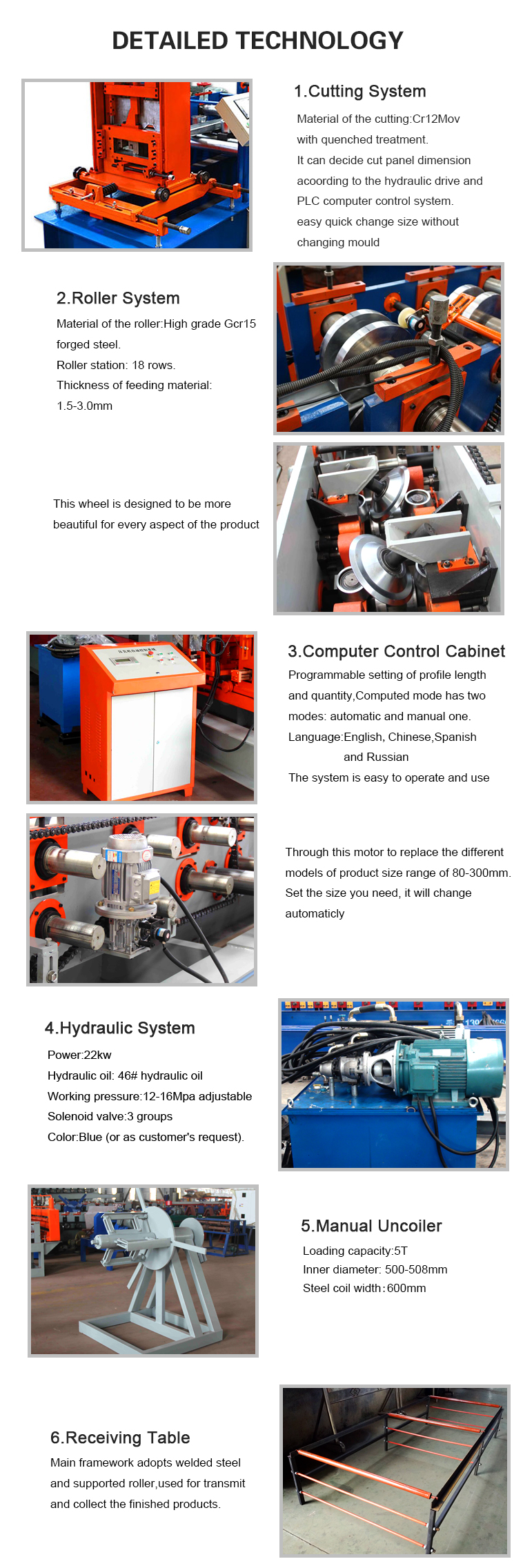

Configurations:
Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming, Motor, Cutting Device ,Hydraulic Station ,PLC Control,Supporter Table.
Control System:
PLC Delta Inverter
Main Frame:
350mm H-Beam
Main Power:
4 kw
Power Supply:
380V, 3-Phase,60Hz
Forming Speed:
15-20m/min
Roll Station:
16 stands
Roller Diameter:
80mm
Thickness of raw material:
1.5-3.0mm

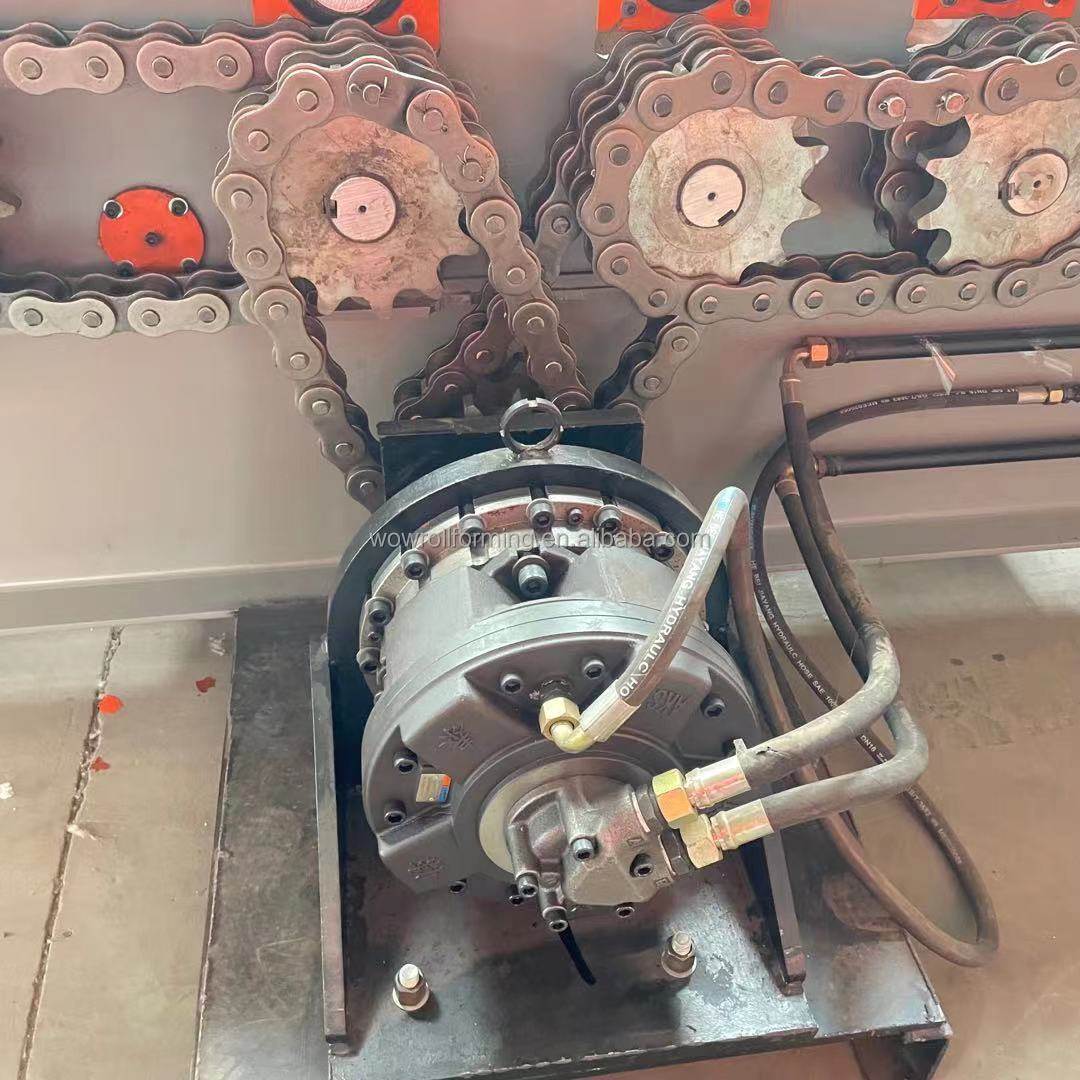

Main motor type:
Hydraulic motor
Material of roller:
GCr15
Diameter of main shaft:
Ø85mm
The thickness of the side plate:
 30mm
Our Advantages LARGE CNC MILLING MACHINEit is a unique plant in Hebei Province.It directly mills the entire frame. The milling machine can make the ‘machine's large surface smoother and the machine is more perfect.c purlin rollformer machinery c profile channel roll C steel framing profile forming machine ENVIRONMENT-FRIENDLY SPRAYING EQUIPMENTThe electrostatic spraying equipment meets the environmental protection regulations of the Chinese government and guarantees the delivery time of the machine.c purlin rollformer machinery c profile channel roll C steel framing profile forming machine NEW CNC MILLINGIt make the backboard of purlin machine, also make the holes on backboard. This milling machine can milling the backboard more level, hole place is more precious. This can make the roller more level after installing,and then the purlin will be more straight.c purlin rollformer machinery c profile channel roll C steel framing profile forming machine ELECTRICAL CONTROL All the control system of our machines we make by ourselves. we have a professional engineer to design and make the control system. This can make sure the after-sale service, when customer have problem with control, we can solve it timely.c purlin rollformer machinery c profile channel roll C steel framing profile forming machine Customer Feedback Company Profile Certifications packaging and shipping
Packaging Details:
Main machine is nude, the computer control box is packed with wooden frame.
Main machine is nude in the container, the computer control box is packed with wooden packaging.
Delivery Detail:
20 days
